RightMark Audio Analyzer test report
| Testing device | DAC8_44.1 24bit |
| Sampling mode | 24-bit, 44 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | 0.2 dB / 0.2 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/inverted |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.06, -0.49 |
Good |
| Noise level, dB (A) | -102.5 |
Excellent |
| Dynamic range, dB (A) | 104.9 |
Excellent |
| THD, % | 0.0005 |
Excellent |
| THD + Noise, dB (A) | -93.0 |
Very good |
| IMD + Noise, % | 0.0024 |
Excellent |
| Stereo crosstalk, dB | -100.2 |
Excellent |
| IMD at 10 kHz, % | 0.0041 |
Excellent |
| General performance | Very good |
Frequency response
| From 20 Hz to 20 kHz, dB | -0.86, +0.06 |
| From 40 Hz to 15 kHz, dB | -0.49, +0.06 |

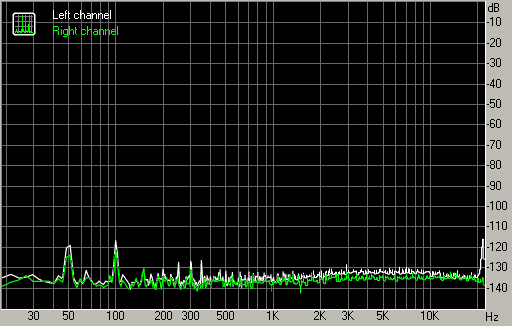

Noise level
Left |
Right |
|
| RMS power, dB | -100.8 |
-102.9 |
| RMS power (A-weighted), dB | -101.2 |
-103.8 |
| Peak level, dB FS | -83.3 |
-83.4 |
| DC offset, % | +0.0 |
+0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +104.2 |
+104.4 |
| Dynamic range (A-weighted), dB | +104.8 |
+105.1 |
| DC offset, % | -0.00 |
-0.00 |

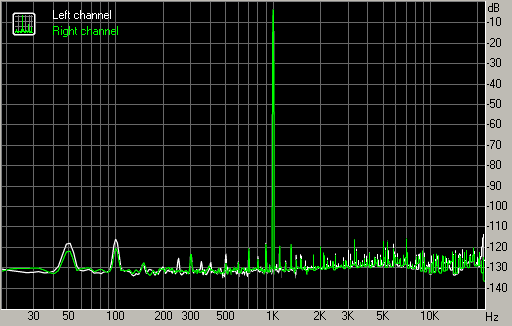

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0005 |
+0.0005 |
| THD + Noise, % | +0.0022 |
+0.0022 |
| THD + Noise (A-weighted), % | +0.0022 |
+0.0022 |

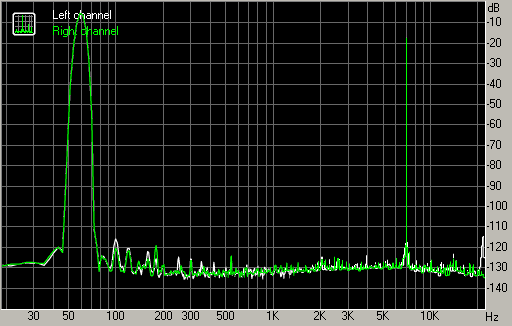

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0024 |
+0.0025 |
| IMD + Noise (A-weighted), % | +0.0024 |
+0.0024 |

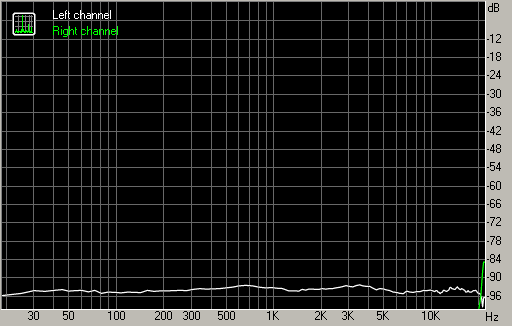

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -94 |
-106 |
| Crosstalk at 1000 Hz, dB | -92 |
-106 |
| Crosstalk at 10000 Hz, dB | -93 |
-102 |

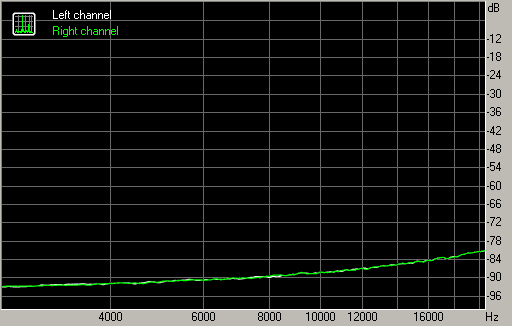

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0027 |
0.0028 |
| IMD + Noise at 10000 Hz, | 0.0039 |
0.0039 |
| IMD + Noise at 15000 Hz, | 0.0055 |
0.0056 |
